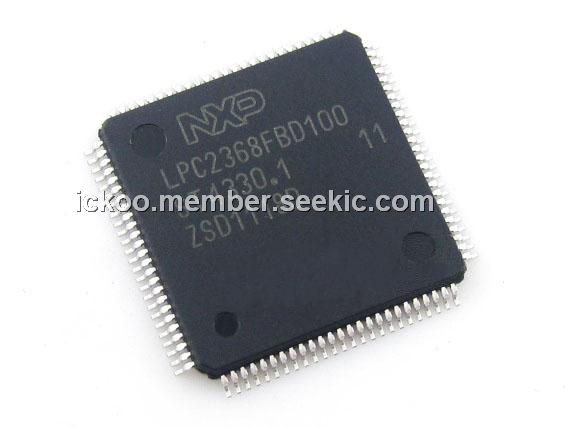

LPC2368FBD100

Single-chip microcontroller, 16-bit/32-bit, real-time emulation, Advanced Vectored Interrupt Controller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.20~6.82 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.20~6.82

PartNumber:: LPC2368FBD100

Brand:: NXP Semiconductors - nxp | Pack: LQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kelvin's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-02

From Other Seller

Part Number:LPC2368FBD100
US $6.20 - 6.82
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LPC2368FBD100 Single-chip microcontroller is based on a 16-bit/32-bit ARM7TDMI-S CPU with real-time emulation that combines the microcontroller with up to 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical performance in interrupt service routines and DSP algorithms, this increases performance up to 30 % over Thumb mode. For critical code size applications, the LPC2368FBD10 alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.

Parametrics

LPC2368FBD100 absolute maximum ratings: (1)supply voltage (core and external rail): -0.5 V min and +3.6 V max; (2)analog 3.3 V pad supply voltage: -0.5 V min and +4.6 V max; (3)input voltage on pin VBAT: -0.5 V min and +4.6 V max; (4)input voltage on pin VREF: -0.5 V min and +4.6 V max; (5)input voltage: -0.5V min and +6.0V max; (6)supply current per supply pin: - 100 mA; (7)ground current per ground pin: - 100 mA; (8)torage temperature: -40 to +125 ℃.

Features

LPC2368FBD100 features: (1)ARM7TDMI-S processor, running at up to 72 MHz; (2)Up to 512 kB on-chip Flash Program Memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities. Flash program memory is on the ARM local bus for high performance CPU access; (3)8/32 kB of SRAM on the ARM local bus for high performance CPU access; (4)16 kB SRAM for Ethernet interface. Can also be used as general purpose SRAM; (5)8 kB SRAM for general purpose DMA use also accessible by the USB; (6)Dual AHB system that provides for simultaneous Ethernet DMA, USB DMA, and program execution from on-chip Flash with no contention between those functions. A bus bridge allows the Ethernet DMA to access the other AHB subsystem; (7)Advanced Vectored Interrupt Controller, supporting up to 32 vectored interrupts.
