Product Summary

The M25P128-VMF6TP is a 128 Mbit (16 Mbit × 8), multilevel Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The M25P128-VMF6TP is organized as 64 sectors, each containing 1024 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 65536 pages, or 16777216 bytes.

Parametrics

M25P128-VMF6TP absolute maximum ratings: (1)TSTG, Storage Temperature: –65 to 150℃; (2)VIO, Input and output voltage (with respect to Ground): –0.5 to VCC + 0.6 V; (3)VCC, Supply voltage: –0.2 to 4.0 V; (4)VPP, Fast Program/Erase voltage: –0.2 to 10.0 V; (5)VESD, Electrostatic Discharge Voltage (Human Body Model): –2000 to 2000 V.

Features

M25P128-VMF6TP features: (1)128 Mbit of Flash memory; (2)2.7 to 3.6 V single supply voltage; (3)SPI bus compatible Serial interface; (4)50 MHz clock rate (maximum); (5)VPP = 9 V for fast Program/Erase mode (optional); (6)Page Program (up to 256 Bytes): in 2.5 ms (typical); in 1.2 ms (typical with VPP = 9 V); (7)Sector Erase (2 Mbit); (8)Bulk Erase (128 Mbit); (9)Electronic signature: JEDEC standard two-byte signature(2018h); (10)More than 10000 Erase/Program cycles per sector; (11)More than 20-year data retention; (12)Packages: ECOPACKR (RoHS compliant).

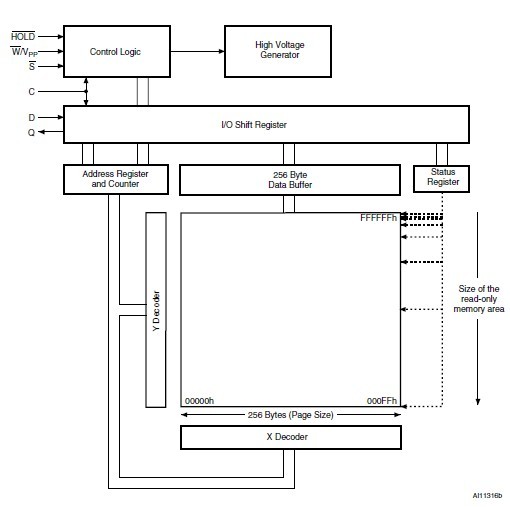

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
M25P128-VMF6TP
M25P128-VMF6TP

STMicroelectronics

Flash 128MBIT SERIEL FLASH

Data Sheet

Negotiable
M25P128-VMF6TPB
M25P128-VMF6TPB


IC FLASH 128MBIT 65NM 3V SO16

Data Sheet

Negotiable
