W78E516B40PL

8-bit microcontroller, PLCC, -0.3to +6.0V, 40 MHz, One full duplex serial port

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.20~1.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.20~1.80

PartNumber:: W78E516B40PL

Brand:: Winbond - Winbond | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kelvin's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-03

From Other Seller

Part Number:W78E516B40PL
US $1.20 - 1.80
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

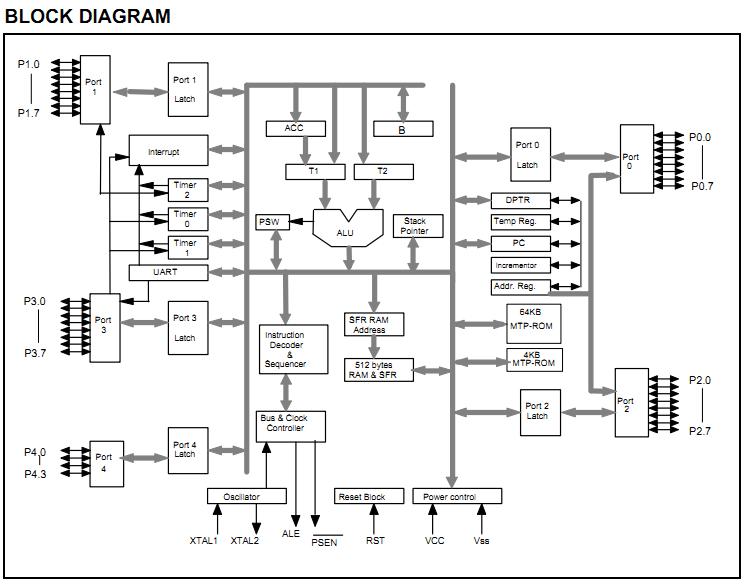

The W78E516B40PL is an 8-bit microcontroller which has an in-system programmable MTP-ROM for firmware updating. The instruction set of the W78E516B40PL is fully compatible with the standard 8052. The W78E516B40PL contains a 64K bytes of main MTP-ROM and a 4K bytes of auxiliary MTP-ROM which allows the contents of the 64KB main MTP-ROM to be updated by the loader program located at the 4KB auxiliary MTP-ROM; 512 bytes of on-chip RAM; four 8-bit bi-directional and bit-addressable I/O ports; an additional 4-bit port P4; three 16-bit timer/counters; a serial port. These peripherals are supported by a eight sources two-level interrupt capability. To facilitate programming and verification, the MTP-ROM inside the W78E516B40PL allows the program memory to be programmed and read electronically. Once the code is confirmed, the user can protect the code for security.

Parametrics

W78E516B40PL absolute maximum ratings: (1)DC Power Supply, VDD-VSS: -0.3to +6.0V; (2)Input Voltage, VIN: VSS -0.3 to VDD +0.3V; (3)Operating Temperature,TA: 0 to 70℃; (4)Storage Temperature, TST: -55 to +150℃.

Features

W78E516B40PL features: (1)Fully static design 8-bit CMOS microcontroller up to 40 MHz; (2)64K bytes of in-system programmable MTP-ROM for Application Program (APROM); (3)4K bytes of auxiliary MTP-ROM for Loader Program (LDROM); (4)512 bytes of on-chip RAM. (including 256 bytes of AUX-RAM, software selectable); (5)64K bytes program memory address space and 64K bytes data memory address space; (6)Four 8-bit bi-directional ports; (7)One 4-bit multipurpose programmable port; (8)Three 16-bit timer/counters; (9)One full duplex serial port; (10)Six-sources, two-level interrupt capability; (11)Built-in power management; (12)Code protection.
