Product Summary

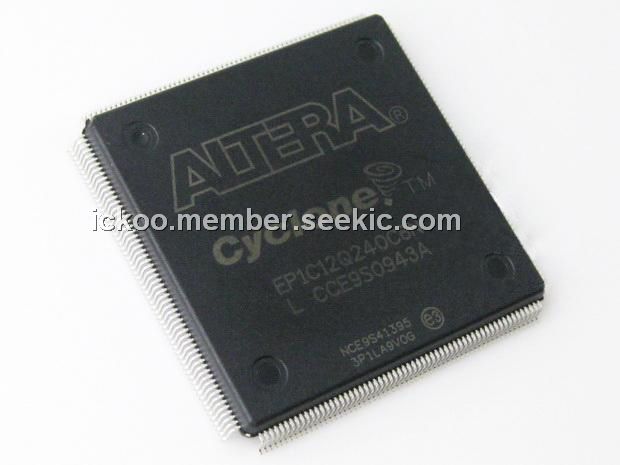

The EP1C12Q240C6N is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. With features like phaselocked loops (PLLs) for clocking and a dedicated double data rate (DDR) interface to meet DDR SDRAM and fast cycle RAM (FCRAM) memory requirements, The EP1C12Q240C6N is a cost-effective solution for data-path applications. EP1C12Q240C6N supports various I/O standards, including LVDS at data rates up to 311 megabits per second (Mbps) and 66-MHz, 32-bit peripheral component interconnect (PCI), for interfacing with and supporting ASSP and ASIC devices. Altera also offers new low-cost serial configuration devices to configure Cyclone devices.
Parametrics
EP1C12Q240C6N absolute maximum ratings: (1)VCCINT Supply voltage: -0.5 to 2.4 V; (2)VCCIO: -0.5 to 4.6 V; (3)VI DC input voltage: -0.5 to 4.6 V; (4)IOUT DC output current, per pin -25 25 mA; (5)TSTG Storage temperature No bias -65 150 ℃; (6)TAMB Ambient temperature Under bias -65 135 ℃; (7)TJ Junction temperature BGA packages under bias 135 ℃.
Features
EP1C12Q240C6N features: (1)2,910 to 20,060 LEs; (2)Up to 294,912 RAM bits (36,864 bytes); (3)Supports configuration through low-cost serial configuration device; (4)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (5)Support for 66-MHz, 32-bit PCI standard; (6)Low speed (311 Mbps) LVDS I/O support; (7)Up to two PLLs per device provide clock multiplication and phaseshifting; (8)Up to eight global clock lines with six clock resources available perlogic array block (LAB) row; (9)Support for external memory, including DDR SDRAM (133 MHz), FCRAM, and single data rate (SDR) SDRAM; (10)Support for multiple intellectual property (IP) cores, including Altera. MegaCore. functions and Altera Megafunctions Partners Program (AMPPSM) megafunctions.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1C12Q240C6N |
|
IC CYCLONE FPGA 12K LE 240-PQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EP1C12 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
EP1C12F256C6 |
|
IC CYCLONE FPGA 12K LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EP1C12F256C6N |
|
IC CYCLONE FPGA 12K LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EP1C12F256C7 |
|
IC CYCLONE FPGA 12K LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EP1C12F256C7N |
|
IC CYCLONE FPGA 12K LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EP1C12F256C8 |
|
IC CYCLONE FPGA 12K LE 256-FBGA |
Data Sheet |
|
|
||||||
