Product Summary
The PS2501L-1 is a high isolation voltage single transistor type multi photocoupler. The PS2501L-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501L-1 is in a plastic DIP (Dual In-line Package).
Parametrics
PS2501L-1 absolute maximum ratings: (1)Reverse Voltage VR: 6 V; (2)Forward Current (DC) IF: 80 mA/ch; (3)Power Dissipation Derating ΔPD/℃: 1.5mW/℃; (4)Power Dissipation PD 150 120 mW/ch; (5)Peak Forward Current IFP: 1 A/ch; (6)Transistor Collector to Emitter Voltage VCEO: 80 V; (7)Emitter to Collector Voltage VECO: 7 V; (8)Collector Current IC: 50 mA/ch; (9)Isolation Voltage2 BV: 5 000 Vr.m.s.; (10)Operating Ambient Temperature TA: -55 to +100 ℃; (11)Storage Temperature Tstg: -55 to +150 ℃.
Features
PS2501L-1 features: (1)High isolation voltage (BV = 5 000 Vr.m.s.); (2)High collector to emitter voltage (VCEO = 80 V); (3)High-speed switching (tr = 3μs TYP., tf = 5μs TYP.); (4)Ordering number of tape product: PS2501L-1-F3: 2 000 pcs/reel; (5)Safety standards; (6)UL approved: No. E72422.

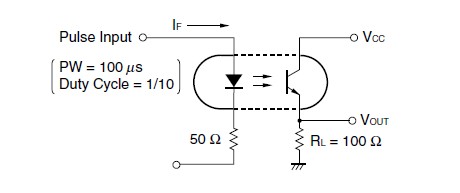

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS2501L-1-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||
 |
PS2501L-1-E4-L |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
Negotiable |
|
||||||||||||
|
PS2501L-1-F3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
PS2501L-1-F3-A |
CEL |
Transistor Output Optocouplers BV= 5000Vr.m.s. Creep 7mm Min. |
Data Sheet |
|
|
||||||||||||
|
PS2501L-1-F3-D-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||
|
PS2501L-1-H-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||
|
PS2501L-1-W-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||||||||
|
PS2501L-1-F3-L-A |
CEL |
Transistor Output Optocouplers BV= 5000Vr.m.s. Creep 7mm Min. |
Data Sheet |
|
|
||||||||||||
