Product Summary

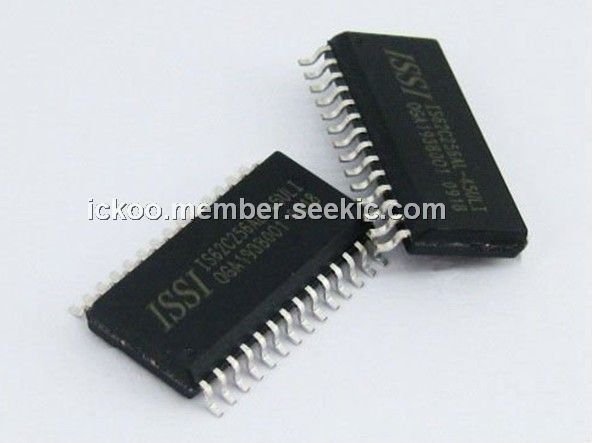

The IS62C256AL-45ULI is one member of the IS62C256AL family which is designed as the 32K x 8 low power CMOS static RAM device that is available in plastic SOP or TSOP (Type I) package. And this device assumes a standby mode at which the power dissipation can be reduced down to 150 μW (typical) at CMOS input levels.

Parametrics

IS62C256AL-45ULI absolute maximum ratings: (1)Terminal Voltage with Respect to GND: -0.5 to +7.0 V;(2)DC output current (low): 20 mA;(3)Storage Temperature: -65 to +150 ℃;(4)Power Dissipation: 0.5 W.

Features

IS62C256AL-45ULI features: (1)Access time: 25 ns, 45 ns; (2)Low active power: 200 mW (typical); (3)Low standby power: 150 uW (typical) CMOS standby and 15 mW (typical) operating; (4)Fully static operation: no clock or refresh required; (5)TTL compatible inputs and outputs; (6)Single 5V power supply; (7)Lead-free available; (8)Industrial and Automotive temperatures available.

Diagrams

IS62C256AL-45ULI functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IS62C256AL-45ULI
IS62C256AL-45ULI

ISSI

SRAM 256K 32K x 8 45ns 5v Async SRAM 5v

Data Sheet

0-1: $0.80
1-25: $0.73
25-100: $0.64
100-500: $0.56
IS62C256AL-45ULI-TR
IS62C256AL-45ULI-TR

ISSI

SRAM 256K 32K x 8 45ns 5v Async SRAM 5v

Data Sheet

0-1000: $0.64
1000-2000: $0.61
2000-5000: $0.59
5000-10000: $0.58
