Product Summary

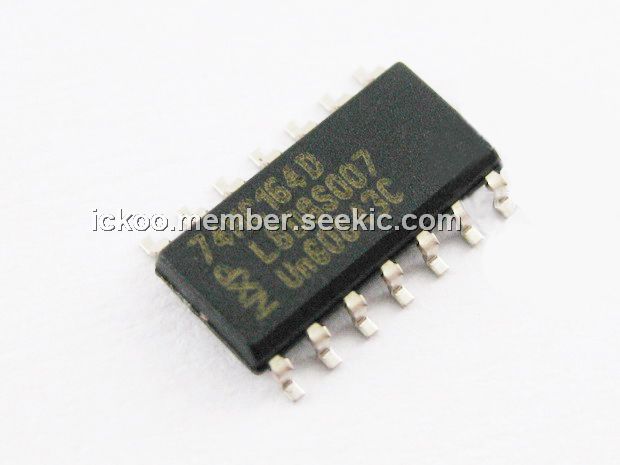

The 74HC164D is a high-speed Si-gate CMOS device and is pin compatible with Low power Schottky TTL (LSTTL). The 74HC164D is specified in compliance with JEDEC standard no. 7A. The 74HC164D is a 8-bit edge-triggered shift register with serial data entry and an output from each of the eight stages. Data of 74HC164D is entered serially through one of two inputs (DSA or DSB); either input can be used as an active HIGH enable for data entry through the other input. Both inputs must be connected together or an unused input must be tied HIGH.
Parametrics
74HC164D absolute maximum ratings: (1)supply voltage: -0.5 to +7 V; (2)input diode current: ±20 mA at VI < -0.5 V or VI > VCC + 0.5 V; (3)output diode current: ±20 mA at VO < -0.5 V or; (4)VO > VCC + 0.5 V; (5)output source or sink current: ±25 mA at VO = -0.5 V to VCC + 0.5 V; (6)VCC or GND current: ±50 mA; (7)storage temperature: -65 to +150 ℃.
Features
74HC164D features: (1)Gated serial data inputs; (2)Asynchronous master reset; (3)Complies with JEDEC standard no. 7A; (4)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V; (5)Multiple package options; (6)Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC164D |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC164D,652 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC164D,653 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER PAR-IN/SERIAL-OUT |
Data Sheet |
|
|
||||||||||||
|
74HC164DB,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC164DB,112 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT |
Data Sheet |
|
|
||||||||||||
|
74HC164DB |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
|
74HC164DB-T |
NXP Semiconductors |
Counter Shift Registers 8-BIT SI-PO SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
