Product Summary

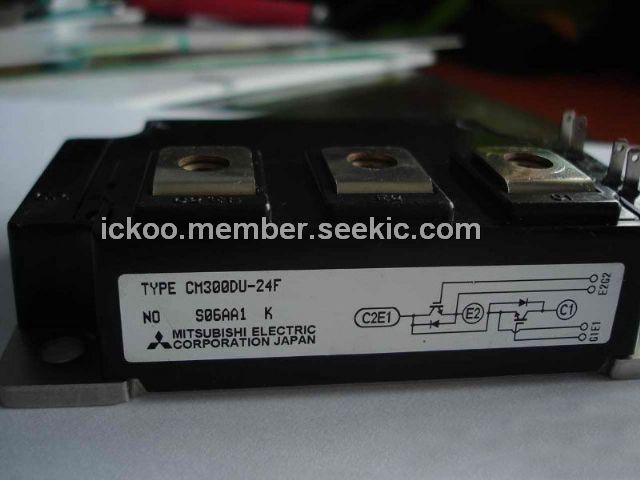

The CM300DU-24F is an IGBT module. The applications of it are General purpose inverters and Servo controls, etc.
Parametrics
CM300DU-24F absolute maximum ratings: (1)Collector-emitter voltage:1200V; (2)Gate-emitter voltage:±20V; (3)Maximum collector dissipation:960W; (4)Junction temperature:-40℃ to +150℃; (5)Storage temperature:-40℃ to +125℃; (6)Isolation voltage:2500Vrms; (7)Collector current:TC = 25℃:300A, Pulse:600A; (8)Emitter current:TC = 25℃:300A, Pulse:600A; (9)Torque strength: Main terminals M6 screw: 3.5N.m to 4.5N.m, Mounting M6 screw: 3.5N.m to 4.5N.m; (10)Weight: 580g..
Features
CM300DU-24F features: (1)IC:300A; (2)VCES:1200V; (3)Insulated Type; (4)2-elements in a pack.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM300DU-24F |
|
IGBT MOD DUAL 1200V 300A F SER |
Data Sheet |
|
|
||||||
