AT89C2051-24SI

low-voltage, high-performance, CMOS 8-bit microcomputer, SOP-20, -1.0V to +7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.55~0.83 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.55~0.83

PartNumber:: AT89C2051-24SI

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kelvin's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:AT89C2051-24SI
US $0.55 - 0.83
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

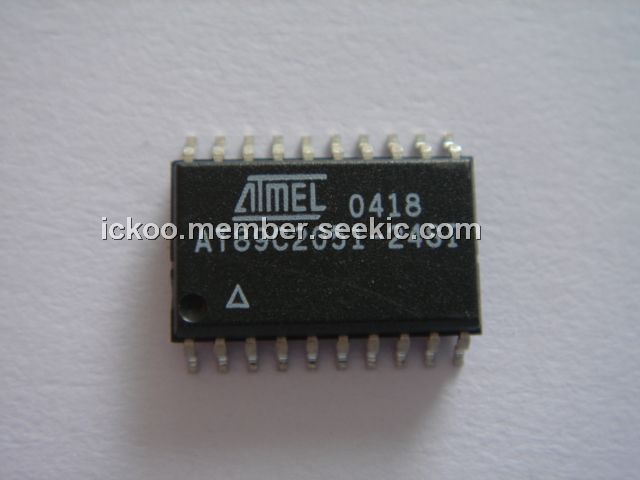

The AT89C2051-24SI is a low-voltage, high-performance CMOS 8-bit microcomputer with 2K Bytes of Flash programmable and erasable read only memory (PEROM). The device is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the industry standard MCS-51 instruction set. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the AT89C2051-24SI is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.

Parametrics

AT89C2051-24SI absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 25.0 mA.

Features

AT89C2051-24SI features: (1)Compatible with MCS-51 Products; (2)2K Bytes of Reprogrammable Flash Memory: Endurance: 1,000 Write/Erase Cycles; (3)2.7V to 6V Operating Range; (4)Fully Static Operation: 0 Hz to 24 MHz; (5)Two-Level Program Memory Lock; (6)128 x 8-Bit Internal RAM; (7)15 Programmable I/O Lines; (8)Two 16-Bit Timer/Counters; (9)Six Interrupt Sources; (10)Programmable Serial UART Channel; (11)Direct LED Drive Outputs; (12)On-Chip Analog Comparator; (13)Low Power Idle and Power Down Modes.
