Product Summary
The W78E516DDG is an 8-bit microcontroller which has an in-system programmable MTP-ROM for firmware updating. The instruction set of the W78E516DDG is fully compatible with the standard 8052. The W78E516DDG contains a 64K bytes of main MTP-ROM and a 4K bytes of auxiliary MTP-ROM which allows the contents of the 64KB main MTP-ROM to be updated by the loader program located at the 4KB auxiliary MTP-ROM; 512 bytes of on-chip RAM; four 8-bit bi-directional and bit-addressable I/O ports; an additional 4-bit port P4; three 16-bit timer/counters; a serial port. These peripherals are supported by a eight sources two-level interrupt capability. To facilitate programming and verification, the MTP-ROM inside the W78E516DDG allows the program memory to be programmed and read electronically. Once the code is confirmed, the user can protect the code for security.
Parametrics
W78E516DDG absolute maximum ratings: (1)DC Power Supply, VDD-VSS: -0.3 to +6.0V; (2)Input Voltage, VIN: VSS -0.3 to VDD +0.3V; (3)Operating Temperature, TA: 0 to 70℃; (4)Storage Temperature, TST: -55 to +150℃.
Features
W78E516DDG features: (1)Fully static design 8-bit CMOS microcontroller up to 40 MHz; (2)64K bytes of in-system programmable MTP-ROM for Application Program (APROM); (3)4K bytes of auxiliary MTP-ROM for Loader Program (LDROM); (4)512 bytes of on-chip RAM. (including 256 bytes of AUX-RAM, software selectable); (5)64K bytes program memory address space and 64K bytes data memory address space; (6)Four 8-bit bi-directional ports; (7)One 4-bit multipurpose programmable port; (8)Three 16-bit timer/counters; (9)One full duplex serial port; (10)Six-sources, two-level interrupt capability; (11)Built-in power management; (12)Code protection.

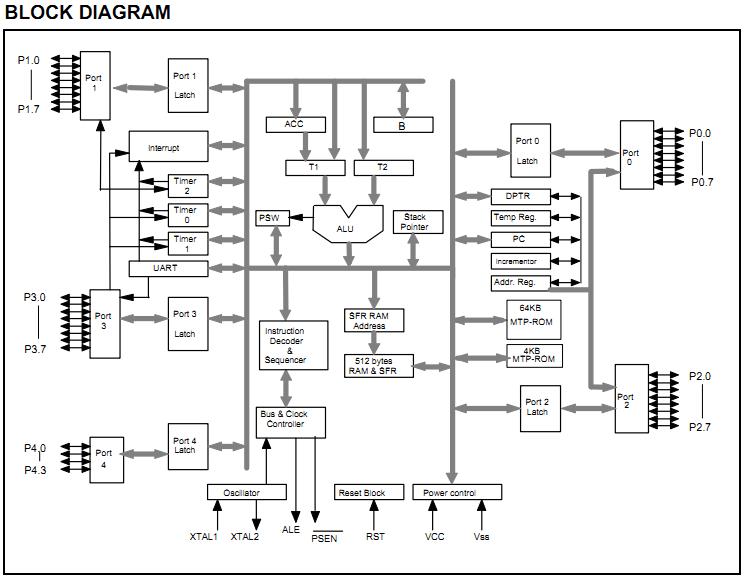

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

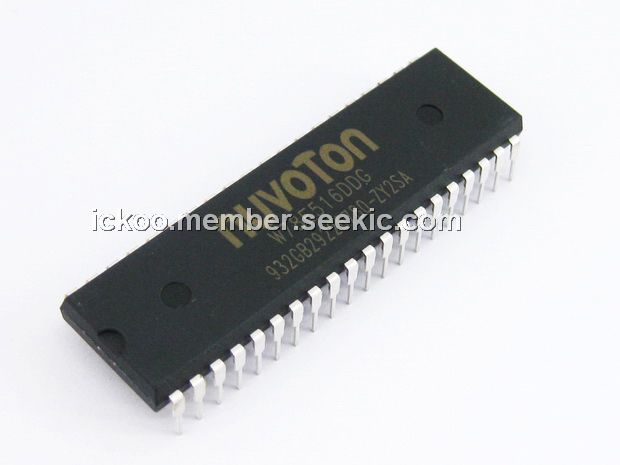

 W78E516DDG |
|
IC MCU 8-BIT 64K FLASH 40-DIP |
Data Sheet |
|
|
||||||
