Product Summary

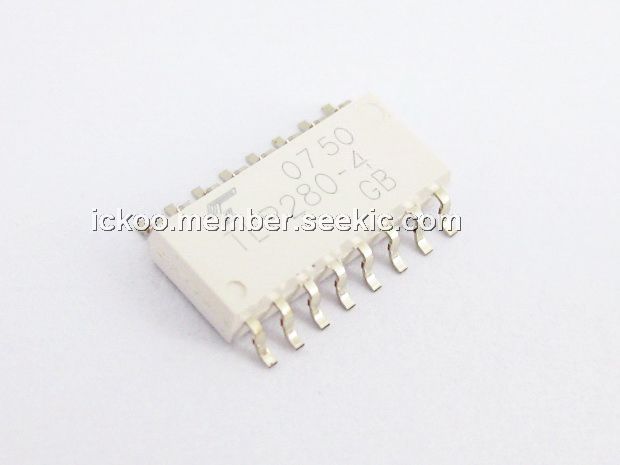

The TLP280-4GB is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA fax modem, programmable controllers.The TLP280-4GB consists of photo transistor, optically coupled to two gallium arsenide infrared emitting diode connected inverse parallel, and can operate directly by AC input current.

Parametrics

TLP280-4GB absolute maximum ratings: (1)collector-emitter voltage:80 V:100V;(2)storage temperature range:-55 to 125℃;(3)emitter-collector voltage:7V;(4)total package power dissipation:170mW;(5)operating temperature:-55 to 100℃;(6)lead soldering temperature :260℃.

Features

TLP280-4GB features:(1)collector-emitter voltage: 80 V (min) ;(2)current transfer ratio: 50% (min) ,rank GB: 100% (min) ;(3)isolation voltage: 2500 Vrms (min) ;(4)UL recognized: UL1577, file No. E67349.

Diagrams

TLP280-4GB pin configuration
