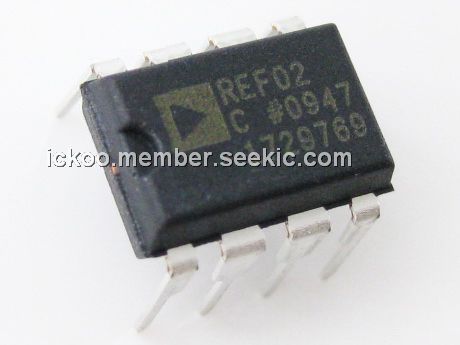

REF02CPZ

precision voltage reference, DIP, 40 V, High load-driving capability, No external components

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~1.86 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~1.86

PartNumber:: REF02CPZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
