P89C52X2BA

Product Summary

The P89C52X2BA is an 8-bit Flash microcontroller. It is manufactured in an advanced CMOS process and contain a non-volatile Flash program memory. The P89C52X2BA supports both 12-clock and 6-clock operation. The device contains 128 byte RAM and 256 byte RAM respectively, 32 I/O lines, three 16-bit counter/timers, a six-source, four-priority level nested interrupt structure, a serial I/O port for either multi-processor communications, I/O expansion or full duplex UART, and on-chip oscillator and clock circuits. In addition, the P89C52X2BA is static design which offers a wide range of operating frequencies down to zero.

Parametrics

P89C52X2BA absolute maximum ratings: (1)Operating temperature under bias:0℃ to +70℃ or –40℃ to +85℃; (2)Storage temperature range:–65℃ to +150℃; (3)Voltage on EA/VPP pin to VSS:0V to +13.0V; (4)Voltage on any other pin to VSS:–0.5V to +6.5V; (5)Maximum IOL per I/O pin:15mA; (6)Power dissipation (based on package heat transfer limitations, not device power consumption):1.5W.

Features

P89C52X2BA features: (1)80C51 Central Processing Unit:8 Kbytes Flash; (2)12-clock operation with selectable 6-clock operation (via software or via parallel programmer); (3)Memory addressing capability:Up to 64 Kbytes ROM and 64 Kbytes RAM; (4)Power control modes:Clock can be stopped and resumed, Idle mode, Power-down mode; (5)Two speed ranges:0 to 20 MHz with 6-clock operation, 0 to 33 MHz with 12-clock operation; (6)LQFP, PLCC or DIP package; (7)Extended temperature ranges; (8)Dual Data Pointers; (9)Three security bits; (10)Four interrupt priority levels; (11)Six interrupt sources; (12)Four 8-bit I/O ports; (13)Full-duplex enhanced UART:Framing error detection, Automatic address recognition; (14)Three 16-bit timers/counters T0, T1 (standard 80C51) and additional T2 (capture and compare); (15)Programmable clock-out pin; (16)Asynchronous port reset; (17)Low EMI (inhibit ALE, slew rate controlled outputs, and 6-clock mode); (18)Wake-up from Power Down by an external interrupt.

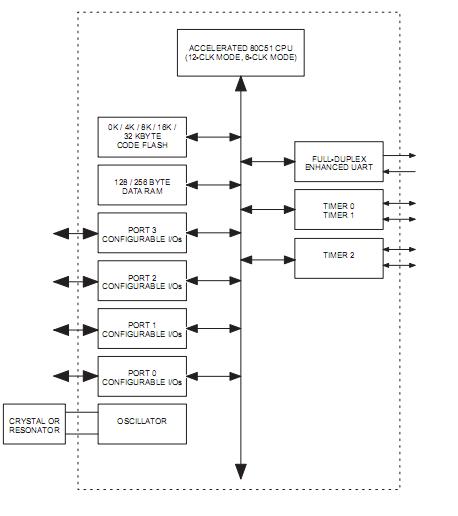

Diagrams
