Product Summary

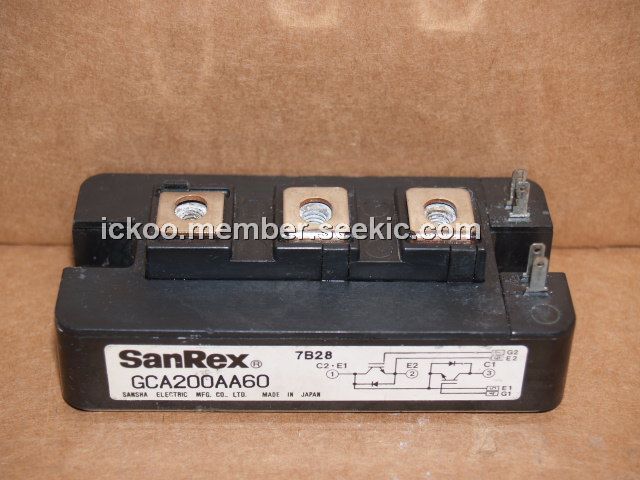

The GCA200AA60 is an IGBT module. It is designed for large current high speed switching. The GCA200AA60 is insulated type, and contains two IGBTs in a series configuration and a fast recovery diode(trr=100ns) anti-parallelly connected to each IGBT.The applications of the GCA200AA60 are motor control(VVVF), UPS, AC servo, switching power supply, welding machine etc.

Parametrics

GCA200AA60 absolute maximum ratings: (1)collector-emitter voltage:600V; (2)gate-emitter voltage:±20V; (3)collector current: DC:200A, pulse(1ms):400A; (4)reverse collector current:200A; (5)total power dissipation:780W; (6)junction temperature:150℃; (7)storage temoerature:-40℃ to +125℃; (8)isolation voltage:2500V; (9)Mass:225g.

Features

GCA200AA60 features: (1)IC=200A/VCES=600V/VECS=1.6V; (2)VCE(SAT)=2.8V(max); (3)soft recovery diode.

Diagrams

GCA200AA60 test circuit
