Product Summary
The M29F040B70K1 is a 4 Mbit (512Kb x8) non-volatile memory that can be read, erased and reprogrammed. These operations can be performed using a single 5V supply. On power-up the memory defaults to its Read mode where it can be read in the same way as a ROM or EPROM. The M29F040B70K1 is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased. Each block can be protected independently to prevent accidental Program or Erase commands from modifying the memory. The M29F040B70K1 is offered in TSOP32 (8 x 20mm), PLCC32 and PDIP32 packages and it is supplied with all the bits erased (set to ‘1’).
Parametrics
M29F040B70K1 absolute maximum ratings: (1)Ambient Operating Temperature (Temperature Range Option 1):0℃ to 70℃; (2)Ambient Operating Temperature (Temperature Range Option 6):–40℃ to 85℃; (3)Ambient Operating Temperature (Temperature Range Option 3):–40℃ to 125℃; (4)Temperature Under Bias:–50℃ to 125℃; (5)Storage Temperature:–65℃ to 150℃; (6)Input or Output Voltage:–0.6V to 6V; (7)Supply Voltage:–0.6V to 6V; (8)Identification Voltage:–0.6V to 13.5V.
Features
M29F040B70K1 features: (1)single 5V ± 10% supply voltage for program, erase and read operations; (2)access time: 45ns; (3)programming time:8 μs per Byte typical; (4)8 uniform 64 Kbytes memory blocks; (5)program/erase controller: embedded byte program algorithm, embedded multi-block/chip erase algorithm, status register polling and toggle bits; (6)erase suspend and resume modes: Read and Program another Block during Erase Suspend; (7)unlock bypass program command: Faster Production/Batch Programming; (8)low power consumption: Standby and Automatic Standby; (9)100,000 Program/erase cycles per block; (10)20 years data retention:Defectivity below 1 ppm/year; (11)electronic signature: Manufacturer Code: 20h, Device Code: E2h.

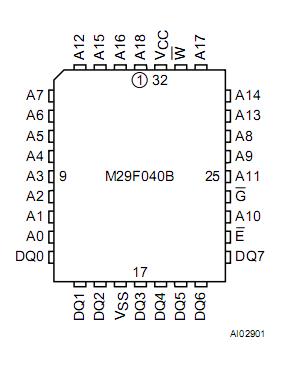

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M29F040B70K1 |
STMicroelectronics |
Flash 4M (512Kx8) 70ns |
Data Sheet |
Negotiable |
|
||||
|
M29F040B70K1T |
STMicroelectronics |
Flash 4 Mbit (512 ) 3 V |
Data Sheet |
Negotiable |
|
||||
