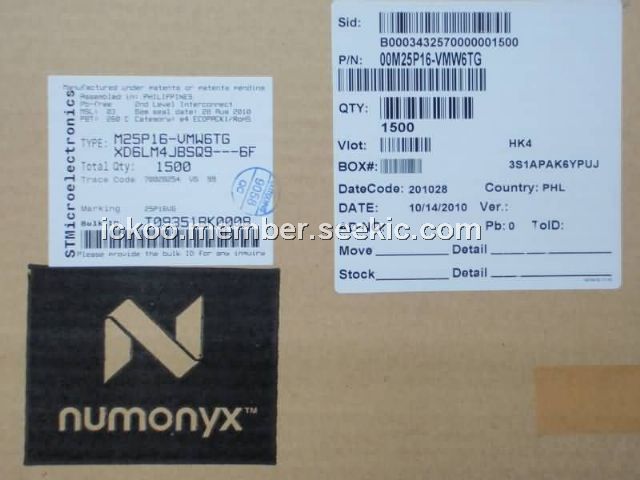

M25P16-VMW6TG

16 Mbit, serial Flash memory, 75 MHz SPI bus interface, 75 MHz Clock rate, SO8W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.52~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.52~0.55

PartNumber:: M25P16-VMW6TG

Brand:: Numonyx B.V - Numonyx | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kelvin's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-24

From Other Seller

Part Number:M25P16-VMW6TG
US $0.52 - 0.55
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

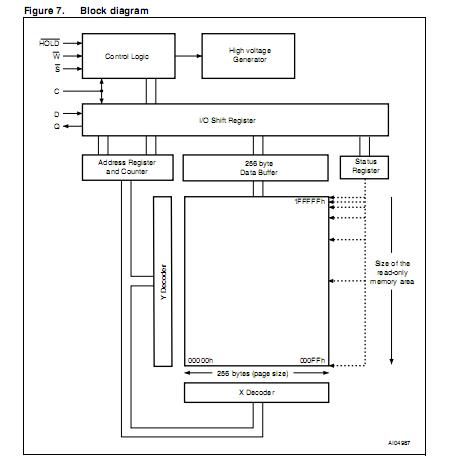

The M25P16-VMW6TG is a 16 Mbit (2 Mbit × 8) serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The M25P16-VMW6TG can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The M25P16-VMW6TG is organized as 32 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 8192 pages, or 2 097 152 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.

Parametrics

M25P16-VMW6TG absolute maximum ratings: (1)Storage temperature:–65℃ to 150℃; (2)Input and output voltage (with respect to ground):–0.6V to VCC+0.6V; (3)Supply voltage:–0.6V to 4.0V; (4)Electrostatic discharge voltage (Human Body model):–2000V to 2000V.

Features

M25P16-VMW6TG features: (1)16 Mbit of Flash memory; (2)Page Program (up to 256 bytes) in 0.64 ms (typical); (3)Sector Erase (512 Kbit) in 0.6 s (typical); (4)Bulk Erase (16 Mbit) in 13 s (typical); (5)2.7 V to 3.6 V single supply voltage; (6)SPI bus compatible serial interface; (7)75 MHz Clock rate (maximum); (8)Deep Power-down mode 1 μA (typical); (9)Electronic signatures:JEDEC standard two-byte signature (2015h), Unique ID code (UID) with 16 bytes read-only, available upon customer request,RES instruction, one-byte, signature (14h), for backward compatibility; (10)More than 100,000 Erase/Program cycles per sector; (11)Hardware Write Protection: protected area size defined by three non-volatile bits (BP0, BP1 and BP2); (12)More than 20 year data retention Packages:ECOPACK (RoHS compliant).
