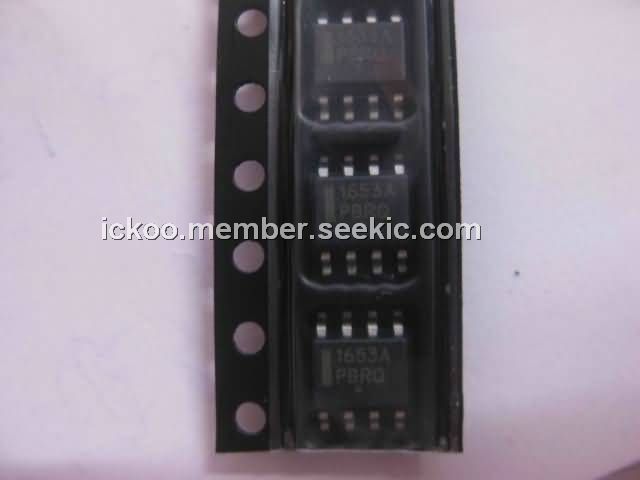

NCP1653ADR2G

controller, Continuous Conduction Mode, Power Factor Correction, -0.3 to +18V, SOT-23

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.43~0.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.43~0.45

PartNumber:: NCP1653ADR2G

Brand:: ON Semiconductor - ON | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Kelvin's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-24

From Other Seller

Part Number:NCP1653ADR2G
US $0.43 - 0.45
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

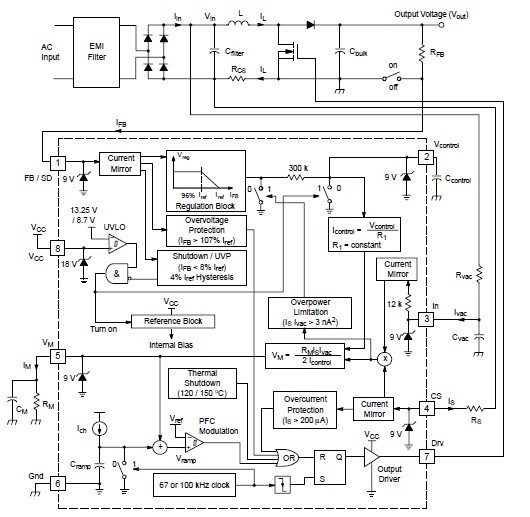

The NCP1653ADR2G is a controller designed for Continuous Conduction Mode (CCM) Power Factor Correction (PFC) boost circuits. It operates in the follower boost or constant output voltage in 67 or 100 kHz fixed switching frequency. Housed in a DIP-8 or SO-8 package, the circuit minimizes the number of external components and drastically simplifies the CCM PFC implementation. It also integrates high safety protection features. The NCP1653ADR2G is a driver for robust and compact PFC stages. Applications include: TV & Monitors, PC Desktop SMPS, AC Adapters SMPS, White Goods.

Parametrics

NCP1653ADR2G absolute maximum ratings: (1)FB, Vcontrol, In, CS, VM Pins (Pins 1.5)Maximum Voltage Range Vmax: -0.3 to +9V; Maximum Current Imax: 100mA; (2)Drive Output (Pin 7) Maximum Voltage Range Vmax: -0.3 to +18V; Maximum Current Range Imax: 1.5A; (3)Power Supply Voltage (Pin 8) Maximum Voltage Range Vmax: -0.3 to +18V; Maximum Current Imax: 100mA; (4)Operating Junction Temperature Range TJ: -40 to +125℃; (5)Storage Temperature Range Tstg: -65 to +150℃.

Features

NCP1653ADR2G features: (1)IEC1000-3-2 Compliant; (2)Continuous Conduction Mode; (3)Average Current-Mode or Peak Current-Mode Operation; (4)Constant Output Voltage or Follower Boost Operation; (5)Very Few External Components; (6)Soft-Start Capability; (7)VCC Undervoltage Lockout with Hysteresis (8.7 / 13.25 V); (8)Overvoltage Protection (107% of Nominal Output Level); (9)Undervoltage Protection or Shutdown (8% of Nominal Output Level); (10)Programmable Overcurrent Protection.
