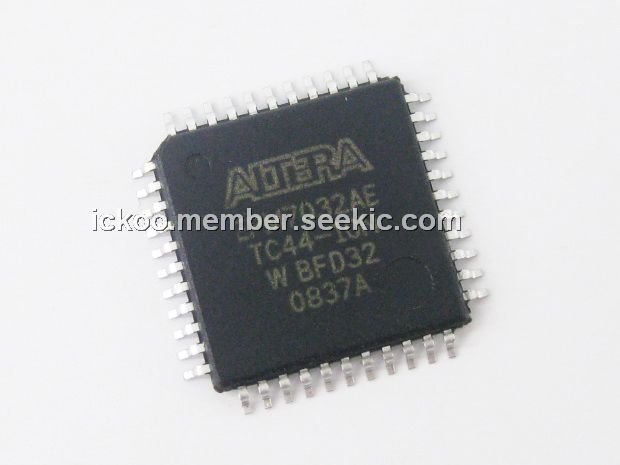

Product Summary

The EPM7032AETC44-10N is a high-density, high-performance device based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EPM7032AETC44-10N operates with a 3.3-V supply voltage and provides 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.

Parametrics

EPM7032AETC44-10N absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: –0.5 to 4.6 V; (2)VI, DC input voltage –2.0 to 5.75 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature No bias: –65 to 150℃; (5)TA, Ambient temperature Under bias: –65 to 135℃; (6)TJ, Junction temperature: 135℃.

Features

EPM7032AETC44-10N features: (1)Supports hot-socketing in MAX 7000AE devices; (2)Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance; (3)PCI-compatible; (4)Bus-friendly architecture, including programmable slew-rate control; (5)Open-drain output option; (6)Programmable macrocell registers with individual clear, preset, clock, and clock enable controls; (7)Programmable power-up states for macrocell registers in MAX 7000AE devices; (8)Programmable power-saving mode for 50% or greater power reduction in each macrocell; (9)Configurable expander product-term distribution, allowing up to 32 product terms per macrocell; (10)Programmable security bit for protection of proprietary designs; (11)6 to 10 pin- or logic-driven output enable signals; (12)Two global clock signals with optional inversion; (13)Enhanced interconnect resources for improved routability; (14)Fast input setup times provided by a dedicated path from I/O pin to macrocell registers; (15)Programmable output slew-rate control; (16)Programmable ground pins.

Diagrams

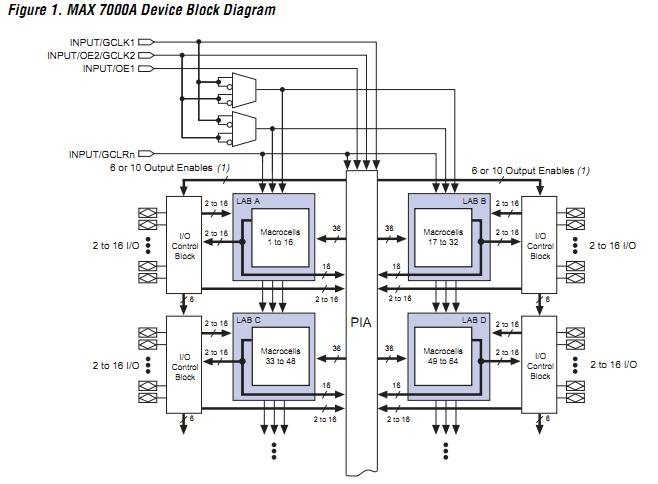

EPM7032AETC44-10N block diagram
