Product Summary

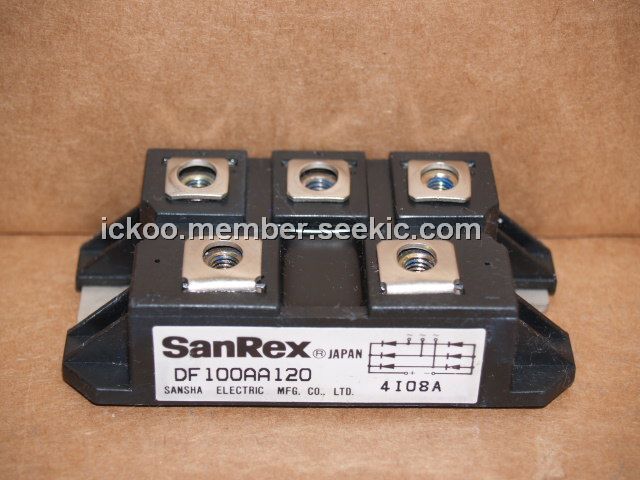

The DF100AA120 is a Power Diode Module. It is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the DF100AA120 is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current is 100Amp(Tc=102℃) Repetitive peak reverse voltage is up to 1,600V. The applications of the DF100AA120 are AC, DC Motor Drive/AVR/Switching-for three phase rectification.
Parametrics
DF100AA120 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage:1200V; (2)Non-Repetitive Peak Reverse Voltage:1300V; (3)Output Current D.C.:100A; (4)Surge Forward Current:910/1000A; (5)I2t:4100A2S; (6)Operating Junction Temperature:-40℃ to +150℃; (7)Storage Temperature:-40℃ to +125℃; (8)Isolation Breakdown Voltage R.M.S.:2500V; (9)Mounting Torque: Mounting M5:2.7N.m, Terminal M5:2.7N.m; (10)Mass:160g.
Features
DF100AA120 features: (1)TjMax=150℃; (2)Isolated mounting base; (3)High reliability by unique glass passivation.
Diagrams
