Product Summary

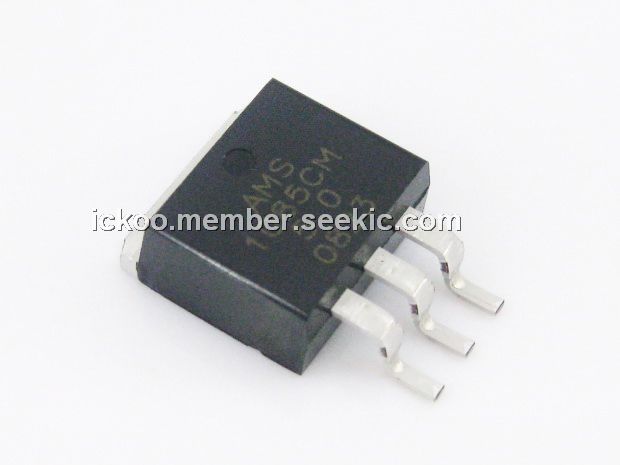

The AMS1085CM-5.0 is an adjustable and fixed voltage regulator designed to provide 3A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1085CM-5.0 is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The AMS1085CM-5.0 is pin compatible with older three-terminal regulators and are offered in 3 lead TO-220 package, 3 and 2 lead TO-263 (Plastic DD) and TO-252 (D PAK) package. The applications of the AMS1085CM-5.0 include High Efficiency Linear Regulators, Post Regulators for Switching Supplies, Microprocessor Supply, Battery Chargers, Constant Current Regulators, Notebook/Personal Computer Supplies and Portable Instrumentation.
Parametrics
AMS1085CM-5.0 absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input Voltage: 15V; (3)Operating Junction Temperature, Control Section: 0 to 125℃; Power Transistor: 0 to 150℃; (4)Storage temperature: - 65 to +150℃; (5)Lead Temperature (25 sec): 265℃.
Features
AMS1085CM-5.0 features: (1)Three Terminal Adjustable or Fixed Voltages 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V; (2)Output Current of 3A; (3)Operates Down to 1V Dropout; (4)Load Regulation: 0.1%; (5)Line Regulation: 0.015%; (6)TO-220, TO-263 and TO-252 packages available.

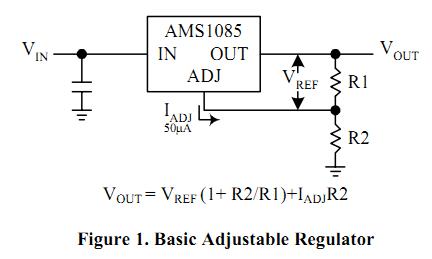

Diagrams
 |
