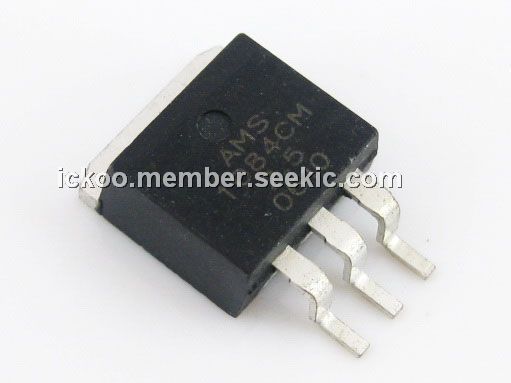

Product Summary

The AMS1084CM-2.5 is an adjustable and fixed voltage regulator designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the AMS1084CM-2.5 is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The applications of the AMS1084CM-2.5 include High Efficiency Linear Regulators, Post Regulators for Switching Supplies, Microprocessor Supply, Battery Chargers, Constant Current Regulators, Notebook/Personal Computer Supplies and Portable Instrumentation.

Parametrics

AMS1084CM-2.5 absolute maximum ratings: (1)Power Dissipation: Internally limited; (2)Input Voltage: 15V; (3)Operating Junction Temperature Range, Control Section: 0℃ to 125℃; Power Transistor: 0℃ to 150℃; (4)Storage temperature: - 65℃ to +150℃; (5)Soldering information: 300℃.

Features

AMS1084CM-2.5 features: (1)Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V; (2)Output Current of 5A; (3)Operates Down to 1V Dropout; (4)Line Regulation: 0.015%; (5)Load Regulation: 0.1%; (6)TO-220, TO-263 and TO-252 packages available.

Diagrams

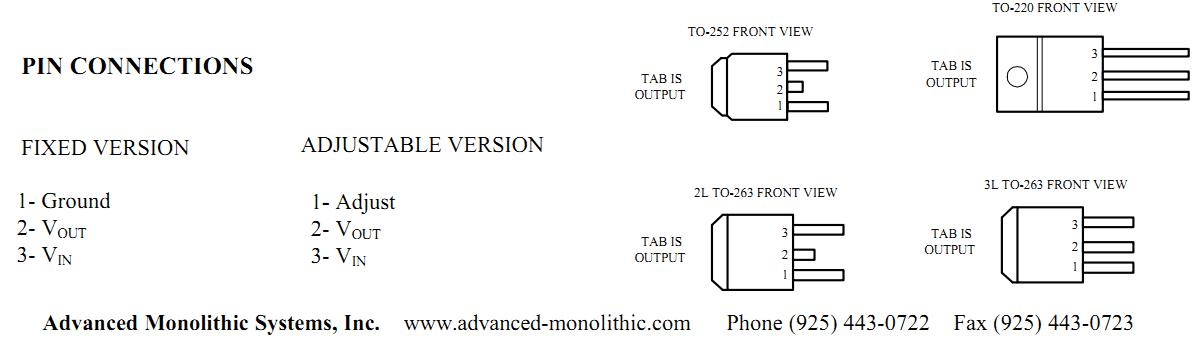

AMS1084CM-2.5 pin connection
