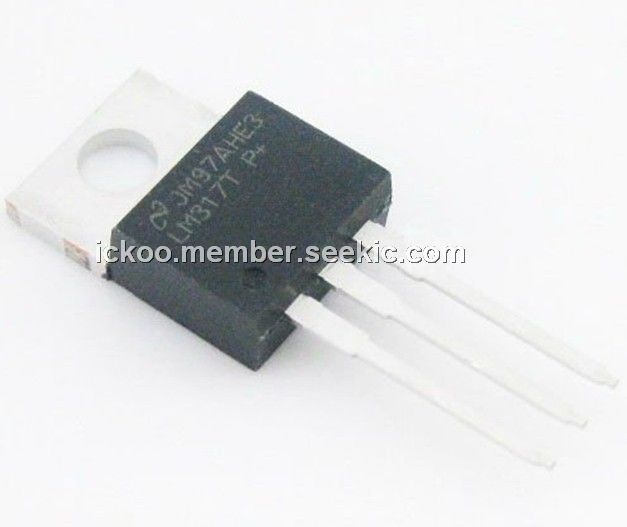

Product Summary

The LM317T is an adjustable 3-terminal positive voltage regulator. It is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. The LM317T is exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM317T is packaged in standard transistor packages which are easily mounted and handled.

Parametrics

LM317T absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input-Output Voltage Differential: +40V, -0.3V; (3)Storage Temperature: -65 to +150℃; (4)Lead Temperature: 300℃; (5)ESD Tolerance: 3 kV.

Features

LM317T features: (1)Guaranteed 1% output voltage tolerance; (2)Guaranteed max. 0.01%/V line regulation; (3)Guaranteed max. 0.3% load regulation; (4)Guaranteed 1.5A output current; (5)Adjustable output down to 1.2V; (6)Current limit constant with temperature; (7)P+ Product Enhancement tested; (8)80 dB ripple rejection; (9)Output is short-circuit protected.

Diagrams

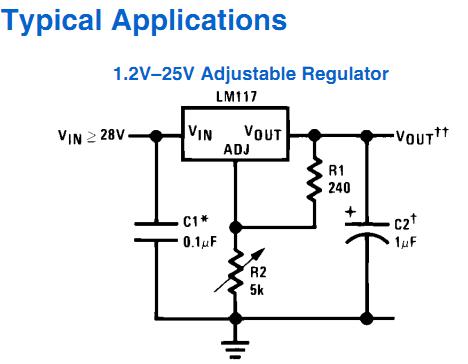

LM317T typical application

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM317T
LM317T
STMicroelectronics
Linear Regulators - Standard 1.2-37V Adj Positive 1.5 Amp Output
Data Sheet
0-1: $0.38
1-10: $0.28
10-100: $0.24
100-250: $0.21
