Product Summary
The MG15G1AL3 is a GTR module. The applications of it include high power switching and motor control.
Parametrics
MG15G1AL3 absolute maximum ratings: (1)collector-base voltage:600V; (2)collector-emitter sustaining voltage:VCEX(SUS):600V, VCEO(SUS):450V; (3)emitter-base voltage:6V; (4)collector current: IC:15A, ICP:30A; (5)collector current: -IC:15A; (6)base current:1A; (7)collector power dissipation:120W; (8)junction temperature:150℃; (9)storage temperature range:-40℃ to +125℃; (10)isolation voltage:2500V.
Features
MG15G1AL3 features: (1)the collector is isolated from case; (2)with built-in free wheeling diode; (3)high DC current gain:hFE=100(min.)(IC=15A); (4)low saturation voltage:VCE(SAT)=2V(max.)(IC=15A); (5)high speed:tf=2us(max.)(IC=15A).

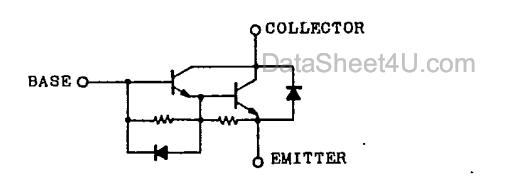

Diagrams
 |
