M25PX32-VMW6E

Product Summary

The M25PX32-VMW6E is a 32 Mbit (4 Mb x 8) serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The M25PX32-VMW6E can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory is organized as 64 sectors that are further divided into 16 subsectors each (1024 subsectors in total). The M25PX32-VMW6E can be erased a 4-Kbyte subsector at a time, a 64-Kbyte sector at a time, or as a whole. It can be Write Protected by software using a mix of volatile and non-volatile protection features, depending on the application needs. The protection granularity is of 64 Kbytes (sector granularity).

Parametrics

M25PX32-VMW6E absolute maximum ratings: (1)Storage temperature:–65℃ to 150℃; (2)Input and output voltage (with respect to ground):–0.6V to VCC+0.6V; (3)Supply voltage:–0.6V to 4.0V; (4)Fast Program/Erase voltage:–0.2V to 10.0V; (5)Electrostatic discharge voltage (Human Body model):–2000V to 2000V.

Features

M25PX32-VMW6E features: (1)SPI bus compatible serial interface; (2)75 MHz (maximum) clock frequency; (3)2.7 V to 3.6 V single supply voltage; (4)Dual input/output instructions resulting in an equivalent clock frequency of 150 MHz:Dual Output Fast Read instruction, Dual Input Fast Program instruction; (5)32 Mbit Flash memory:Uniform 4-Kbyte subsectors, Uniform 64-Kbyte sectors; (6)Additional 64-byte user-lockable, one-time programmable (OTP)area; (7)Erase capability:Subsector (4-Kbyte) granularity,Sector (64-Kbyte) granularity, Bulk Erase (32 Mbit) in 34 s (typical); (8)Write protections:Software write protection applicable to every 64-Kbyte sector (volatile lock bit),Hardware write protection: protected area size defined by three non-volatile bits (BP0,BP1 and BP2); (9)Deep Power-down mode: 5 μA (typical); (10)Electronic signature:JEDEC standard two-byte signature (7116h), Unique ID code (UID) with16 bytes read-only, available upon customer request; (11)More than 100 000 write cycles per sector; (12)More than 20 year data retention; (13)Packages:RoHS compliant; (14)Automotive Certified Parts Available.

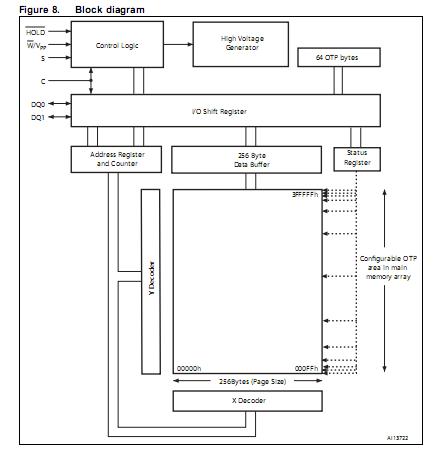

Diagrams
