Product Summary

The M25P40-VMN6TP is a 4 Mbit (512K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The M25P40-VMN6TP can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The M25P40-VMN6TP is organized as 8 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 2048 pages, or 524,288 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.

Parametrics

M25P40-VMN6TP absolute maximum ratings: (1)Storage Temperature:–65℃ to 150℃; (2)Input and Output Voltage (with respect to Ground) –0.6V to 4.0V; (3)Supply Voltage:–0.6V to 4.0V; (4)Electrostatic Discharge Voltage (Human Body model):–2000V to 2000V.

Features

M25P40-VMN6TP features: (1)4 Mbit of Flash Memory; (2)Page Program (up to 256 Bytes) in 1.5ms (typical); (3)Sector Erase (512 Kbit) in 1s (typical); (4)Bulk Erase (4 Mbit) in 4.5s (typical); (5)2.7V to 3.6V Single Supply Voltage; (6)SPI Bus Compatible Serial Interface; (7)40MHz Clock Rate (maximum); (8)Deep Power-down Mode 1μA (typical); (9)Electronic Signature (12h).

Diagrams

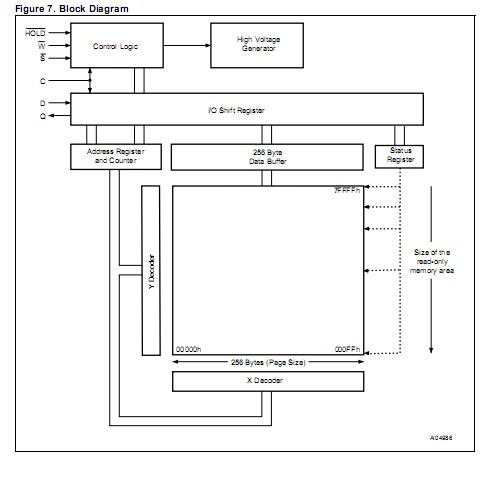

M25P40-VMN6TP block dirgram
