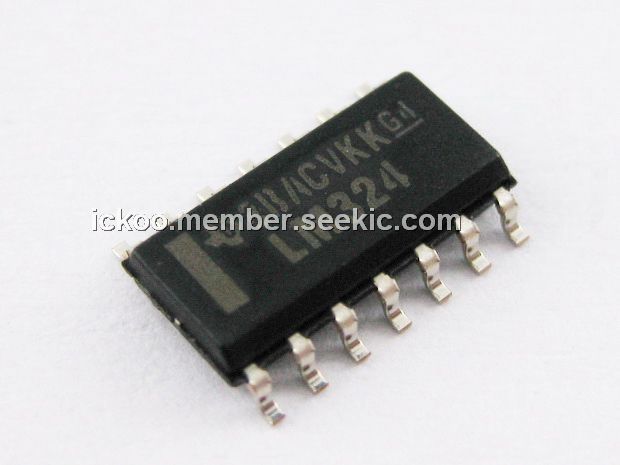

Product Summary

The LM324DR consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation of the LM324DR from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of the LM324DR is independent of the magnitude of the supply voltage.

Parametrics

LM324DR absolute maximum ratings: (1)Operating virtual junction temperature, TJ 150 ℃; (2)Case temperature for 60 seconds FK package 260 ℃; (3)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package 300 ℃; (4)Storage temperature range, Tstg -65 to 150 ℃; (5)Supply voltage, VCC ±13 or 26V; (6)Differential input voltage, VID ±26V; (7)Input voltage, VI -0.3 to 26V.

Features

LM324DR features: (1)Wide Supply Ranges; (2)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7)Internal Frequency Compensation.

Diagrams

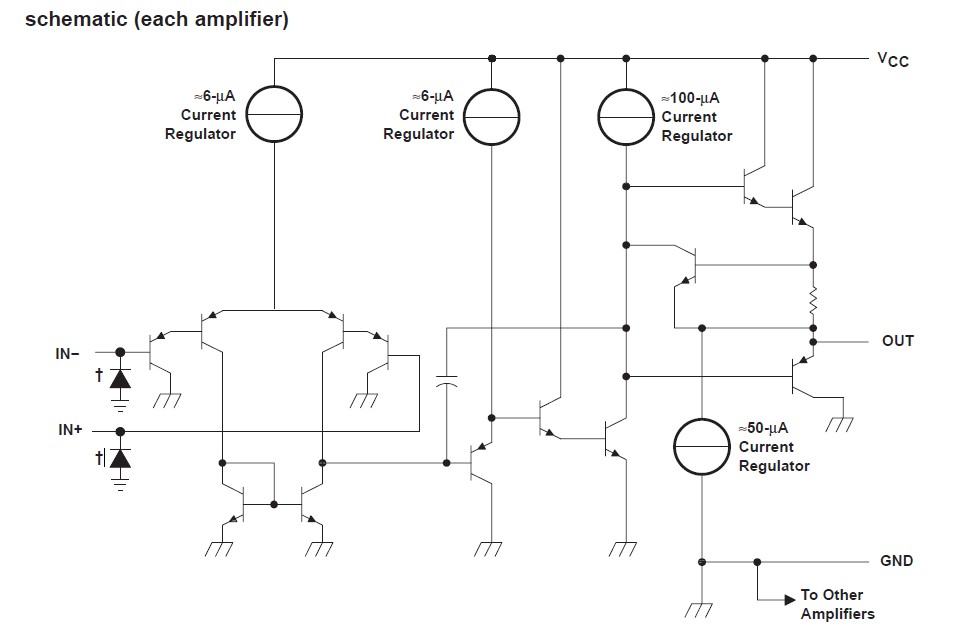

LM324DR schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM324DR
LM324DR

Texas Instruments

Operational Amplifiers - Op Amps Quad GP Op Amp

Data Sheet

0-1: $0.23
1-25: $0.15
25-100: $0.12
100-250: $0.10
LM324DR2
LM324DR2

ON Semiconductor

Operational Amplifiers - Op Amps 3-32V Quad 5mV VIO

Data Sheet

Negotiable
LM324DR2G
LM324DR2G

ON Semiconductor

Operational Amplifiers - Op Amps 3-32V Quad 5mV VIO Commercial Temp

Data Sheet

0-1: $0.28
1-25: $0.19
25-100: $0.15
100-500: $0.10
LM324DRG4
LM324DRG4

Texas Instruments

Operational Amplifiers - Op Amps Quad General-Purpose Op Amp

Data Sheet

0-1: $0.23
1-25: $0.17
25-100: $0.14
100-250: $0.09
LM324DRG3
LM324DRG3

Texas Instruments

Operational Amplifiers - Op Amps Quadruple Op Amp

Data Sheet

0-1: $0.32
1-25: $0.19
25-100: $0.15
100-250: $0.11
LM324DRE4
LM324DRE4

Texas Instruments

Operational Amplifiers - Op Amps Quad General-Purpose Op Amp

Data Sheet

0-1: $0.23
1-25: $0.16
25-100: $0.12
100-250: $0.09
